Model Details

• Model

  BJ6123FCEVCH

• Length/Width/Height (mm）

  12,450×2,500×3,460

• Max speed (Km/h)

  100

• Curb weight (Kg)

  12750

• Max. gross weight (Kg)

  18,000

• Passenger capacity

  37+7+1

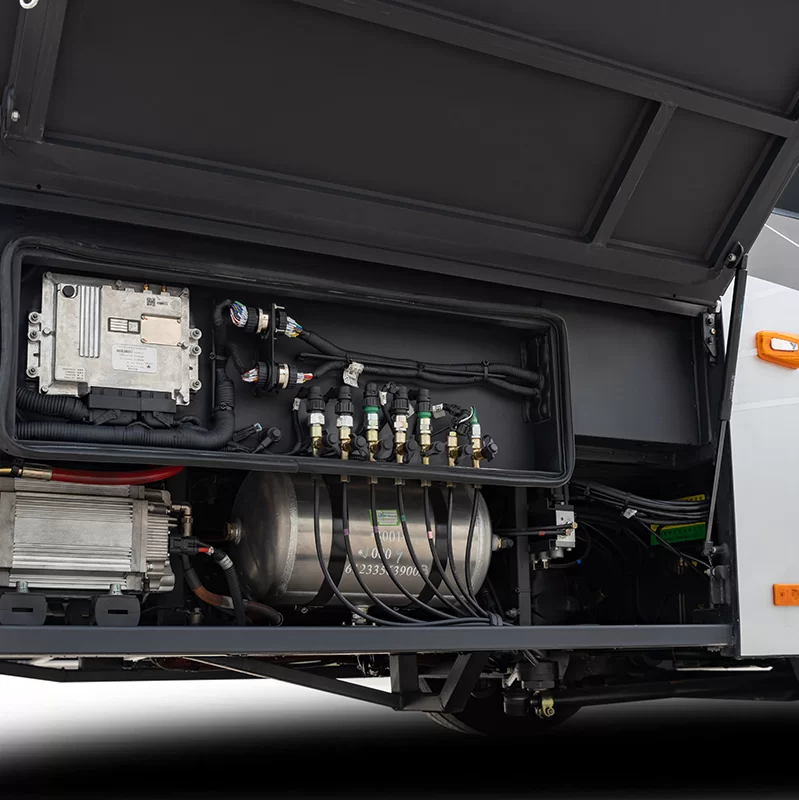

• Fuel Cell System

  65kWh

• Fuel Stack

  SinoHytec (Toyota fuel cell)

Specifications

• Hydrogen Cylinder

  35Mpa

• Power Battery

  60 kWh battery pack

• Cooling system

  Intelligent electronic contorl cooling system

• Front axle

  ZF, 7.5T, disc brake

• Rear axle

  ZF, 13T, disc brake

• Frame

  Low entry

• Suspension

  Air suspension, with stabilizer bar

• Steering

  Bosch

• ABS/EBS

  WABCO

• ECAS

  WABCO

• Handrail

  Standard

• LED destination sign

  Front, side & rear

• Floor

  Selected floor mat, PVC floor

• Passenger Door

  Double inner-swing type front door &
  single inner-swing middle door

• Window

  Front windshield：laminated glass
  Rear windshield：sealed tempered glass
  Side window：sealed tempered glass

• Inner trimming

  Standard

• Seats

  8MA city bus seats
  Driver seat: Grammer

• Inner lighting

  Long strip lamps

• A&V system

  2 sets 21″ LCD TV set, hard disc player

• A/C

  With, independent A/C with heater

• CCTV system

  8 cameras CCTV system, include rear view
  mirrow & recorder function

• Painting

  According to the order

• Other

  Can be provided as required
